Description
The item is here in stock, just some manual assembly by myself is still required. Also, due to the initial volume expect your order to be shipped in 1 to 3 weeks. Thank you so much!
Please read this description completely and don’t rush when placing your order, make sure you selected all the add-ons you want and your shipping details are correct, anyway, if there’s something you missed or made a mistake, e-mail me and i will add whatever you want and/or correct any mistake. Thank you!
The standard kit Includes:
- The Mini-ITX Ironclad Lite main board
- All interconnects needed to integrate with your DE10-Nano; GPIO, USB, Ethernet cable, and User IO ribbon cable. To integrate a QMTECH or Mister Pi make sure to add the compatibility Kit optional add-on.
- I/O backplate for ATX/Mini-ITX and Thin Mini-ITX (marked for manual cutting)
See all specifications and full product information HERE
Optional Add-ons quick information:
- QMTECH & Mister Pi Compatibility Kit: By default the Ironclad Lite only include the parts to mount the original DE10-Nano, If you want to mount a QMTECH’s Cyclone V or the Mister Pi you will need this kit of interconnects. It includes: USB to micro USB adapter (for QMT and Mr. Pi), a micro USB M-F cable (for QMT and Mr. Pi), and a ribbon FC cable (for QMT only).
- Remote Control Kit (recommended): Allows you to power ON/Off your MiSTer from your couch, also the Reset, Menu, and USR MiSTer functions. Combined with the MT32-Pi Pro internal hat also controls switching of the User Port, changing roms and synths, midi volume and other general system functions.
- Massive Heatsink (recommended): Custom heatsink to keep your FPGA massively cool (35x35x15mm size). Ideal for silent operation, or even completely passive cooling!

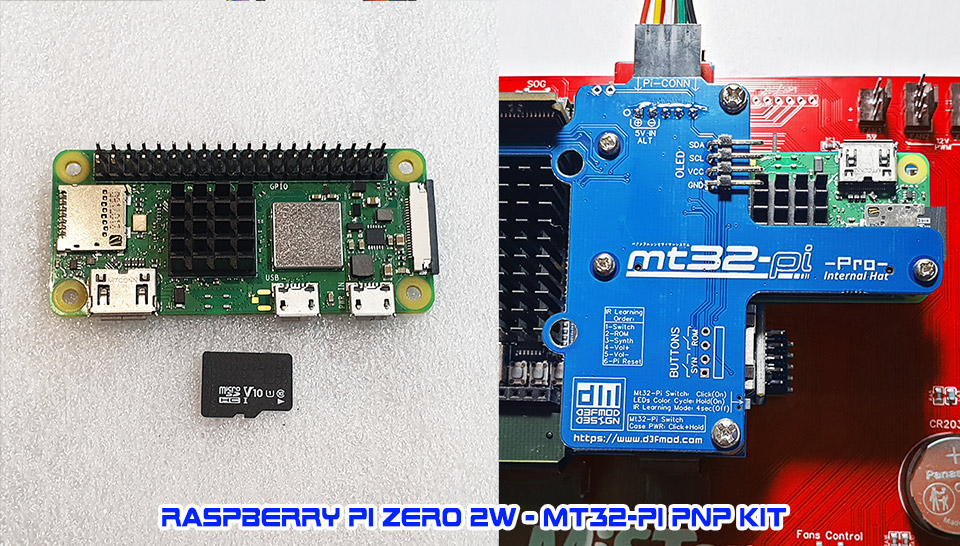

- Mt32-Pi PRO Internal Hat for DE10-Nano or Mister Pi (recommended): The internal and advanced Mt32-Pi hat for the Ironclad Plus/Lite, compatible with official cores. This model only works with the official De10-Nano and the Mister Pi. More information HERE.
- Mt32-Pi PRO Internal Hat for QMTECH Cyclone V with RTC (recommended): Same as above but designed for QMTECH’s Cyclone V only, It also has Integrated Real Time Clock functionality with battery holder. more information HERE.
- The Hi-Fi BLASTER (recommended): Internal plug and play analog audio enhancement module with fantastic amplified headphones output, all information HERE.
- 128MB SDRAM Module: Needed to to play the “big” good old games, it is the “4 Chips” module, it is not suitable for Thin Mini-ITX builds as it is taller than the 2 chips modules. Suitable for standard Mini-ITX builds. Not compatible with the QMTECH’s Cyclone V because of space.
- Extra I/O backplate cut to “Thin Mini-ITX” size: The I/O backplate included by default has the standard size for Mini-ITX/ATX cases, It has a line drawn so you can cut it yourself to “Thin Mini-ITX” size with a hand saw or a dremel if needed. If you buy this add-on I will include an extra I/O backplate cut to Thin Mini-ITX size.
- SNAC Adapters FULL KIT: Kit that includes all the SNAC Adapters I make plus the USB3 extension cable at a special price. If you mark this option make sure you don’t also mark the other checkboxes for the standalone SNAC adapters by mistake, except if you want more than one unit of an adapter ;). You can find all the information about this adapters HERE.
- SNAC Adapters USB3: Connect to the USB3 shaped user port, compatible also with official MiSTer IO board and others. 1 Player or 2 Players depending on model, Compatible with standard cores snac and also compatible with DB9 SNAC8 cores. The definitive snac splitters at an affordable price, what else could I say?. You can find all the information about this adapters HERE.
- USB3 Male to Male extension: Necessary to connect the USB3 SNACS, it is a standard male to male USB3.0 extension cable.
- RGB to Composite/S-Video converter: It plugs to the video multi-out (VGA out) and converts the RGB signal to composite and S-video. PAL and NTSC standard is selectable with a switch. Very useful for cores that still do not support the official Composite/S-Video output signal. MORE INFO
The DE10-Nano FPGA board, case/psu, controllers, etc, are in pictures only for referencie and are sold separately by their respective manufacturers.
If you have problems with the payment process or credit card verification fails, make sure you introduce the billing details exactly as they are registered with your credit card holder, if that doesn’t solve it, or you don’t have a card, please contact me via e-mail for alternative payment methods.
