Description
This can be considered a pre-order with “low” waiting time. The factory is making all the stock and then it requires manual work on my part, so It is estimated to be shipped in March ASAP in order of purchase, please keep this in mind when placing your order. Thank you!
Please read this description completely and don’t rush when placing your order, make sure you selected all the add-ons you want and your shipping details are correct, anyway, if there’s something you missed or made a mistake, e-mail me and i will add whatever you want and/or correct any mistake. Thank you!

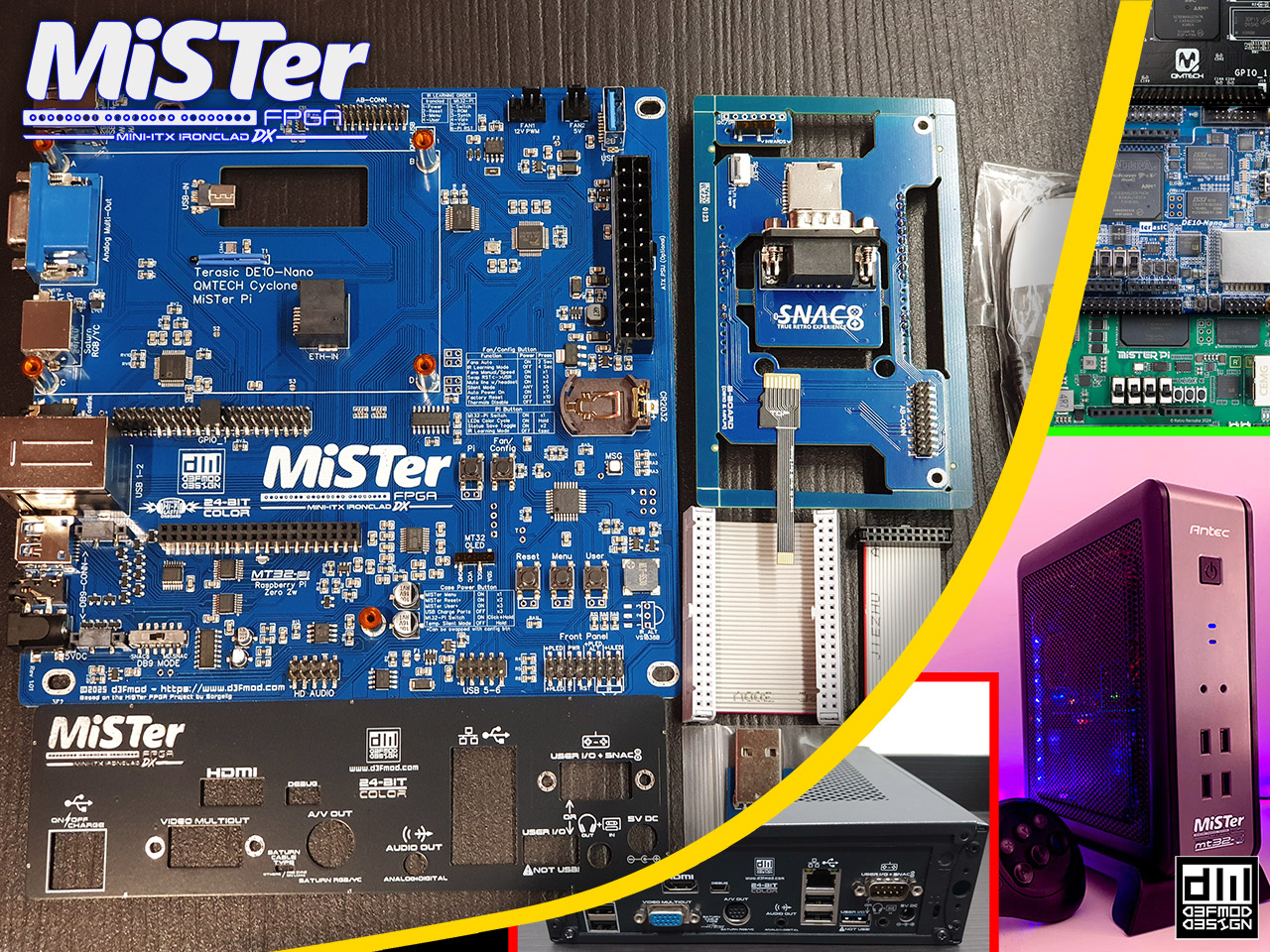

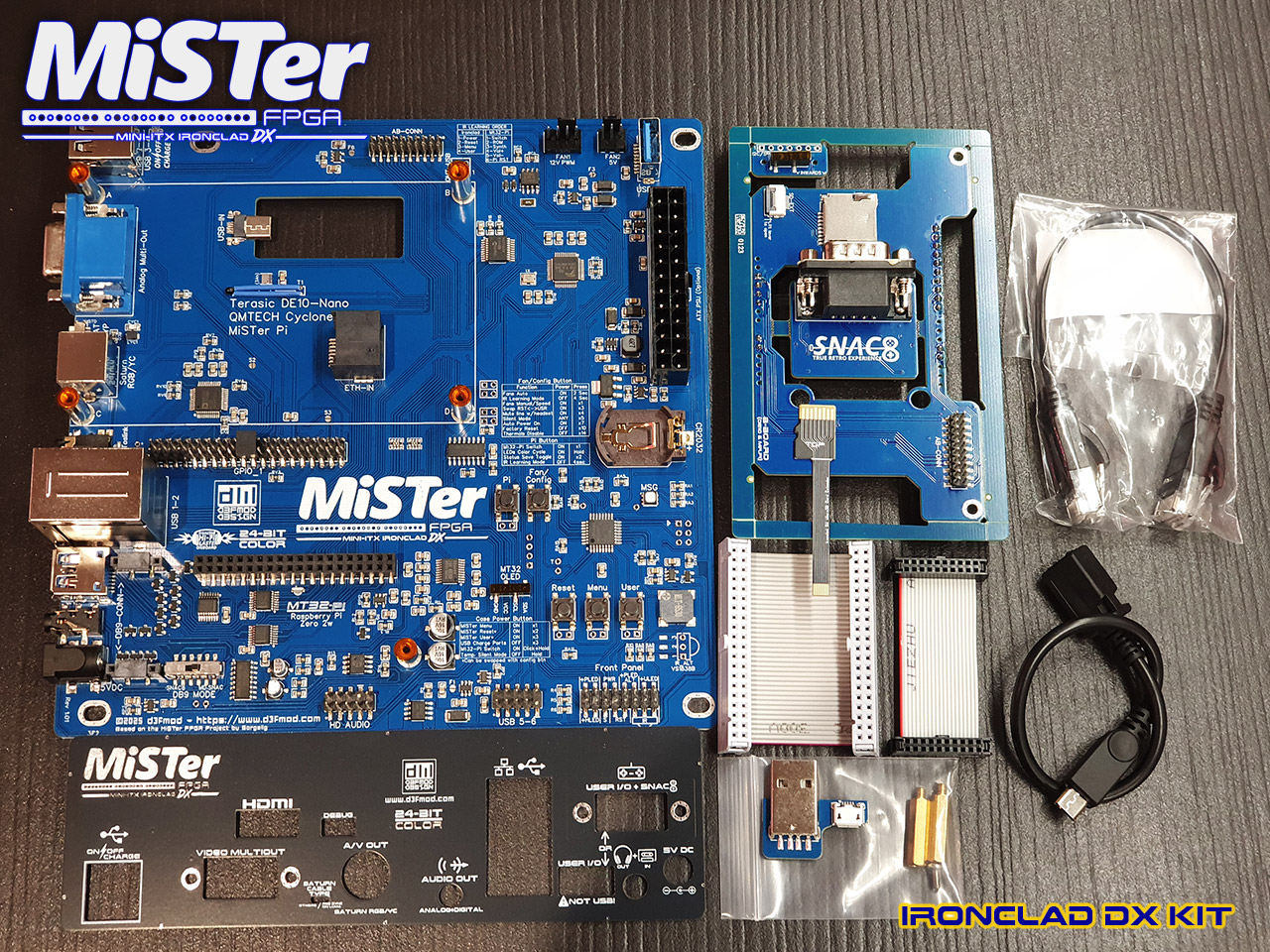

This kit Includes:
- The Mini-ITX Ironclad DX main board

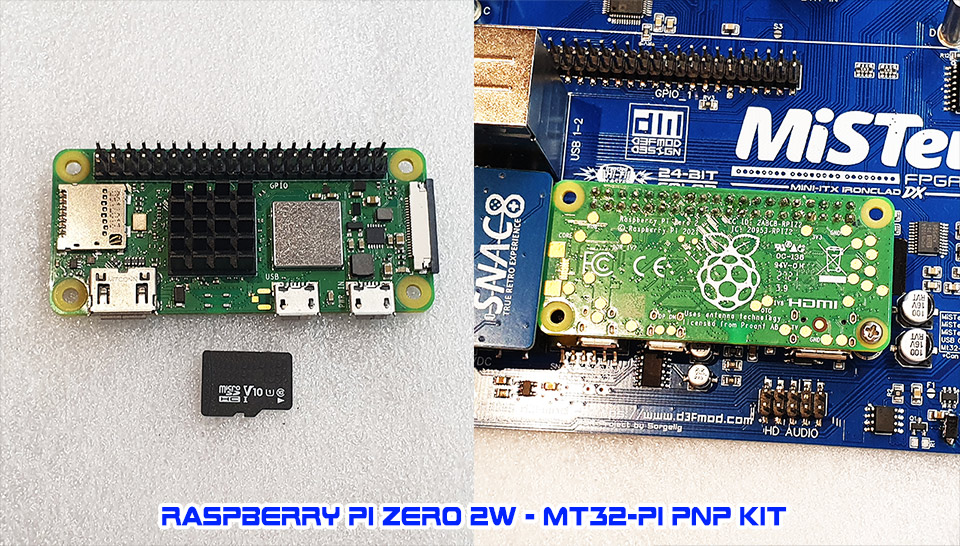

- B-Board for DE10-nano & Mister Pi
- All bridges and interconnects, 2 pillars, and a screw to secure the mt32-pi
- Backplate for rear I/O panel
See all specifications and full product information HERE
Optional Add-ons quick information:
- Massive Heatsink (recommended): Custom heatsink to keep your FPGA massively cool (35x35x15mm size). Ideal for silent operation, or even completely passive cooling!
- Remote Control Kit (recommended): Allows you to power ON/Off your MiSTer from your couch, also the Reset, Menu, and USR MiSTer functions. Combined with the internal MT32-Pi it also controls switching of the User Port, changing roms and synths, midi volume and other general system functions.

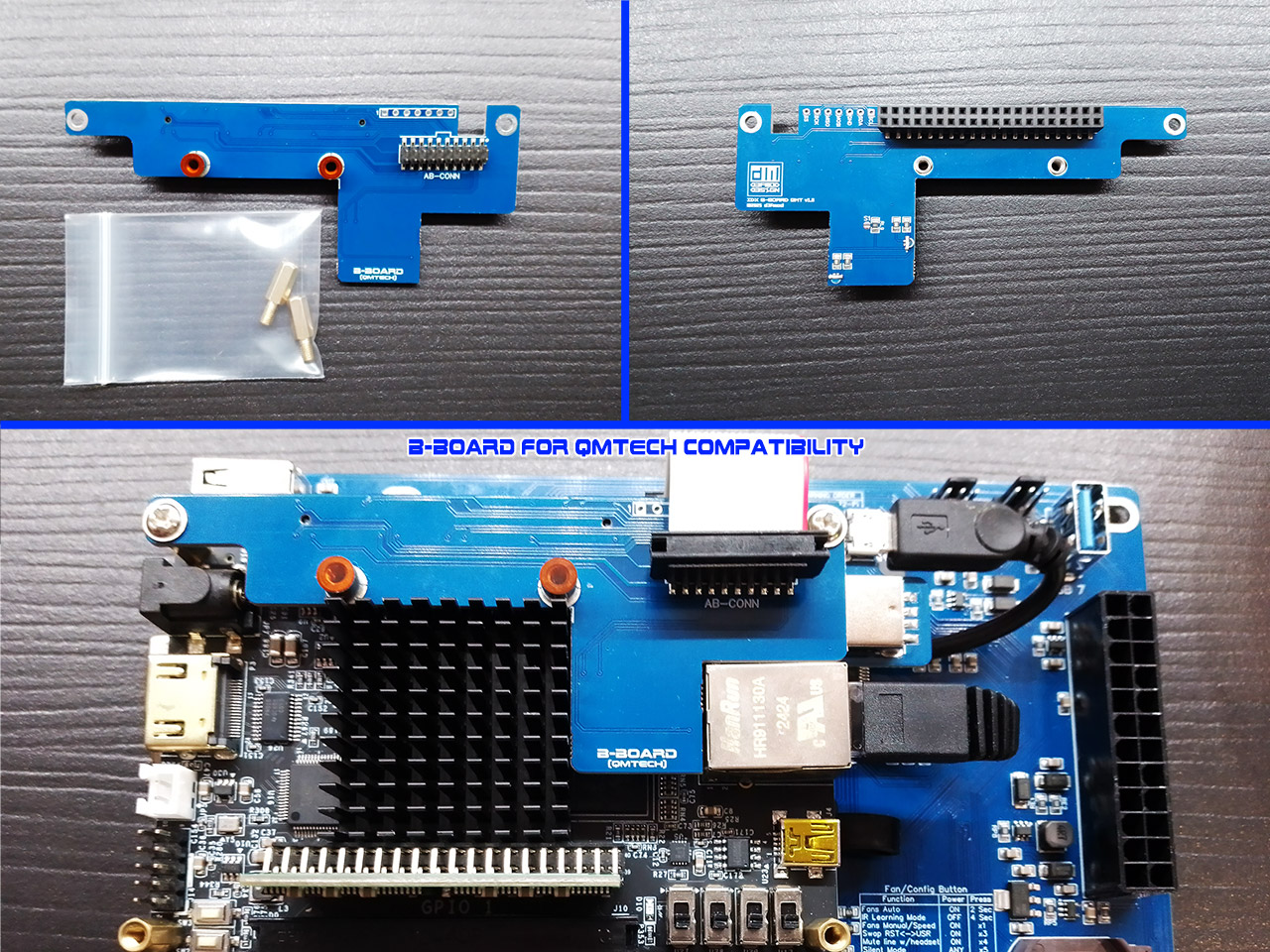

- B-Board for QMTECH Cyclone V KFB compatibility: As the layout of this FPGA board is very different it needs this special B-Board to connect it to your Ironclad DX. It also provides pillars to mount a fan, has the same illumination leds than the standard B-Board, and serves as guide for the Massive heatsink on QMTECH’s board.

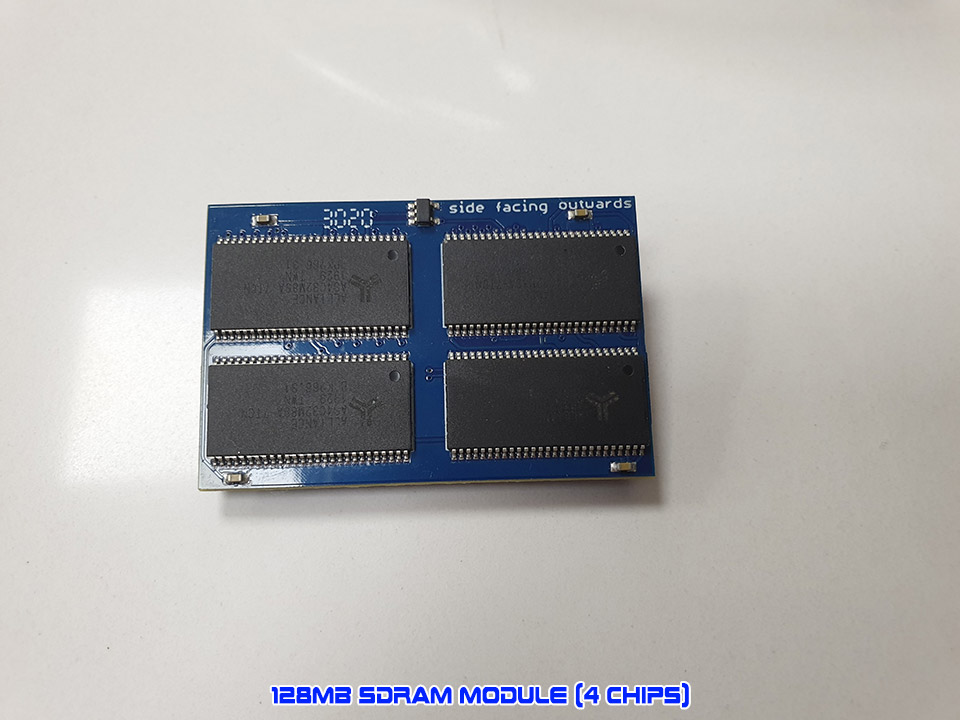

- 128MB SDRAM Module: Needed to to play the “big” good old games, this is Antonio Villena’s 4 chips module, compatible with all cores, maximum speed and reliability.

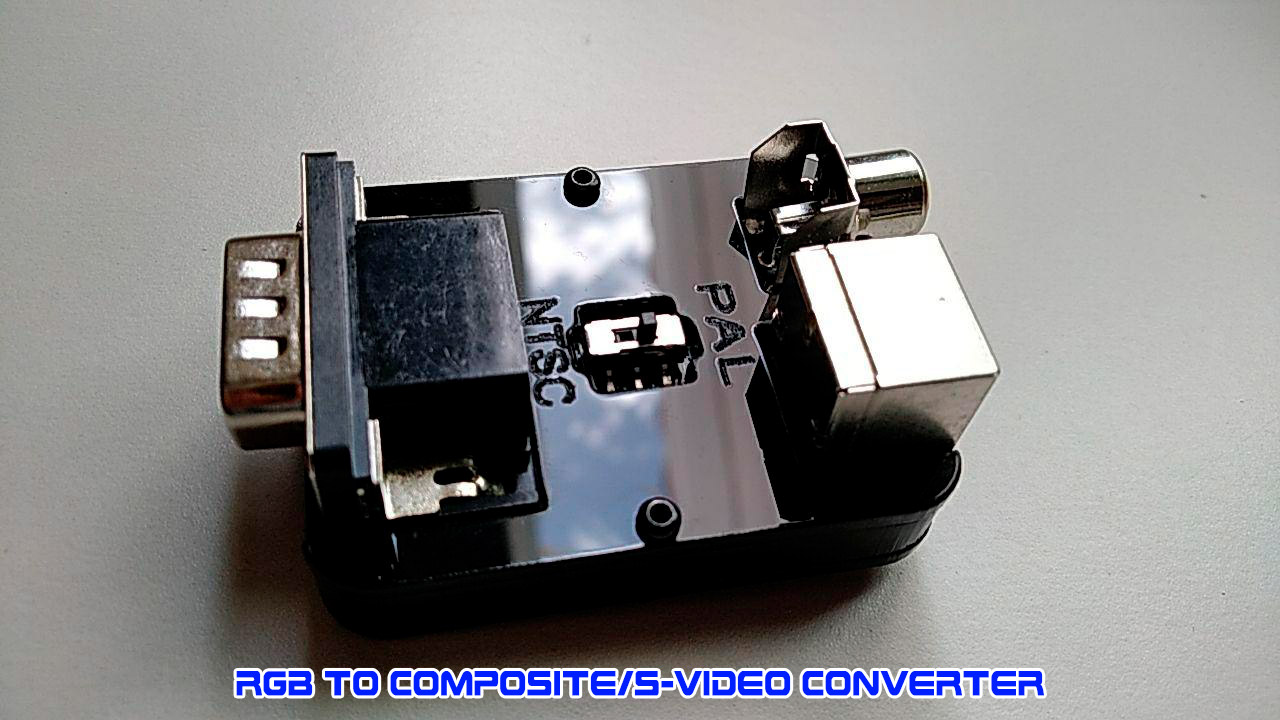

- RGB to Composite/S-Video converter: It plugs to the video multi-out (VGA out) and converts the RGB signal to composite and S-video. PAL and NTSC standard is selectable with a switch. Very useful for cores that do not support the official Composite/S-Video output signal ot your TV set is giving you issues with the official MiSTer’s S-video standard. MORE INFO
SNAC Adapters (USB3) Add-ons quick information:
- SNAC Adapters USB3 FULL KIT: Kit that includes all the USB3 SNAC Adapters I make plus the USB3 extension cable at a special price. No DB9 adapters are included. If you mark this option don’t also mark the other checkboxes for the standalone USB3 SNAC adapters by mistake, except if you want more than one unit of an adapter of course. You can find all the information about this adapters HERE.
- SNAC Adapters USB3: Connect to the USB3 shaped userio port, compatible also with official MiSTer IO board and others. 1 Player or 2 Players depending on model, Compatible with standard cores snac and also compatible with DB9 SNAC8 cores. The definitive snac splitters at an affordable price, what else could I say?. You can find all the information about this adapters HERE.
- USB3 Male to Male extension: Necessary to connect the USB3 SNACS, it is a standard male to male USB3.0 extension cable.
SNAC Adapters (DB9) Add-ons quick information:

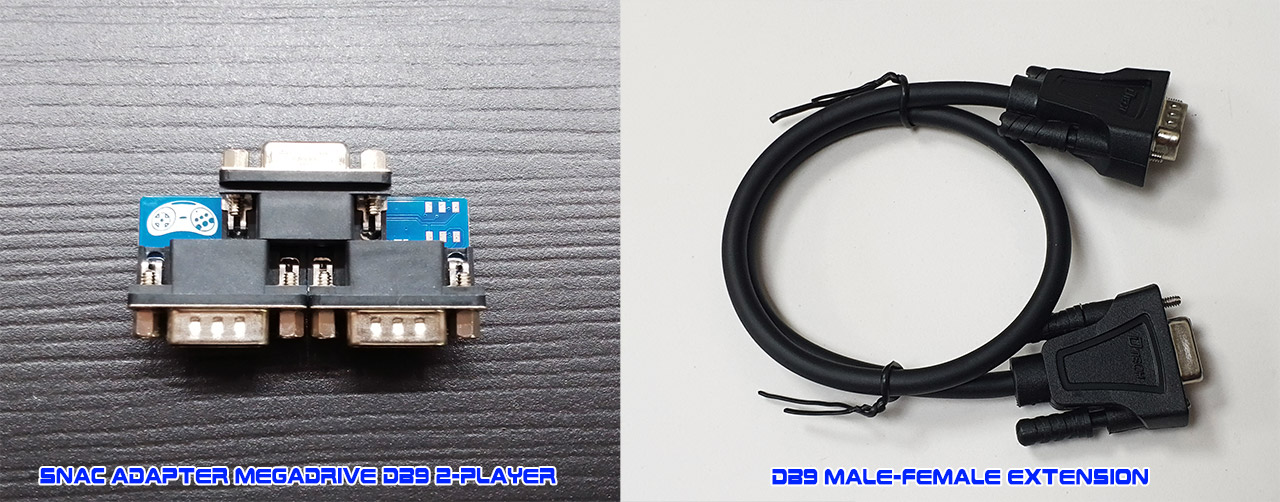

- SNAC Adapter DB9 Megadrive/Gen 2-Player: If you use the DB9 fork cores this adapter allows you to control the Mister’s menu, NES, SNES, Neo-Geo, Genesis, PCE and more, lag free, with your Megadrive controllers via SNAC interface.
- DB9 Extension cable (0.4m): Needed to connect the DB9 SNAC adapters to your Ironclad. It is a standard DB9 M-F extension cable (not null-modem).
The FPGA board, case/psu, controllers, etc, are in pictures only for reference and are sold separately by their respective manufacturers.
If you have problems with the payment process or credit card verification fails, make sure you introduce the billing details exactly as they are registered with your credit card holder, if that doesn’t solve it, or you don’t have a card, please contact me for alternative payment methods.
